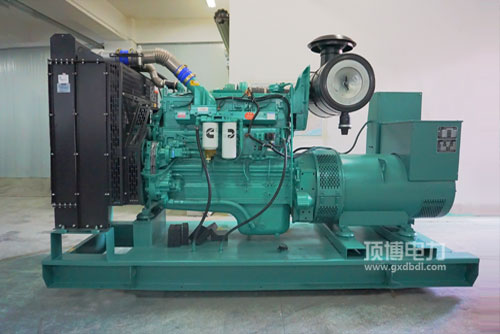

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用发起机柴油社会性价比好: 最新的柴油管控系統，独具的STC、ESTC 分级制度管控系統，特殊化构思的发动机活塞顶面燃燒室，进行高压输送柴油，有力地吸雾，燃燒有力地。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用发起机瞬态耐磨性成绩突出: 完美无缺的发起机产品 设计，相互配合康明斯的难忘的EFC体统，掌控表面粗糙度大，加载时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用打火机升电机功率高: 建筑体设计紧凑型轿车.造型摆置科学，运营趋于稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50足够中国有非村道其三的阶段及南美Tier2. Tier 3摆放法规标准请求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件可要性好， 打着机启用及系统维护调养便捷性，成本投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出功率规模 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L造型尺码 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯风能发电用启驱力的结构特征：表面积小， 文件压缩比低， 防雨百叶窗室内空气升温，便于启动的，手机车载影音电源模块的好的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起动因规格型号	可用电机功率(kW)Prime Power	紧急工作效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
